Fundamental Parameters

The fundamental parameter of the main circuit:

• Rated insulation voltage 660V.
• Rated working current 25、35、93A separately.
• The regulator seal of rated setting current.
• A current of the thermal component.

Auxiliary Circuit:

• There is one pair of N/O and N/C contact with electric insulation.
• Rated insulation voltage 550V.
• Rated frequency 50-60Hz.
• Use group, rated working voltage, conventional thermal current, and rated current.

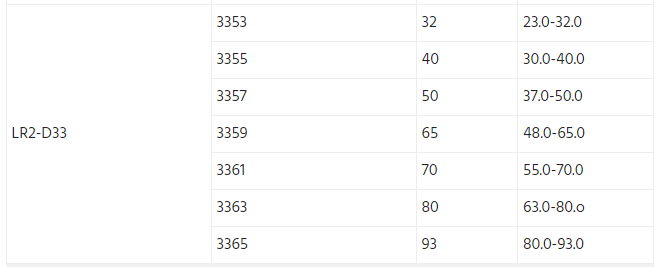

Data Sheet:
