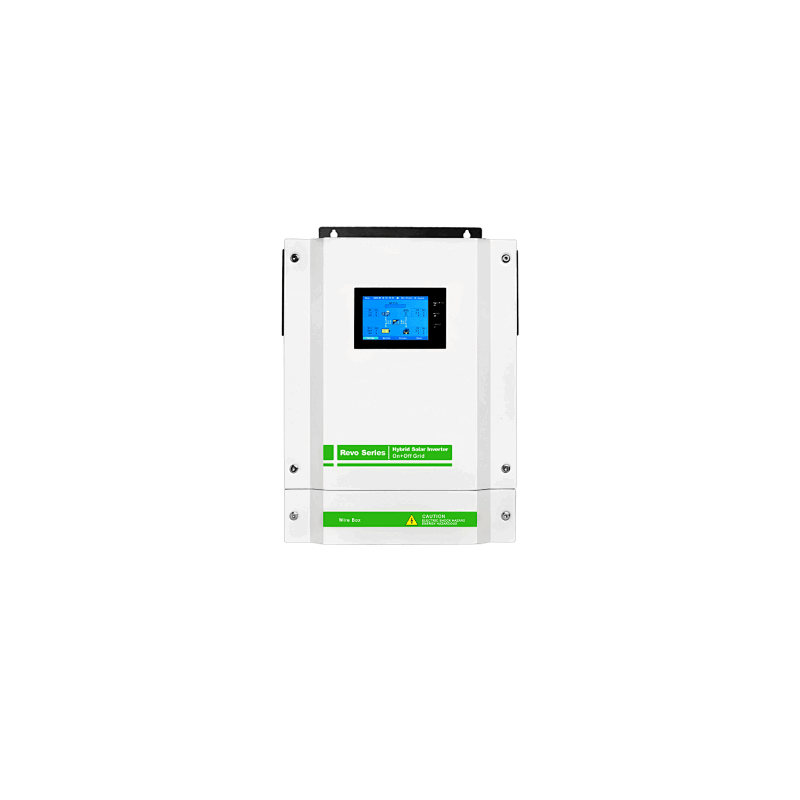

REVO II Series Hybrid Energy Storage Inverter
Model NO.: REVO II Series
Product Snapshot:
- Model：3-5.5kw
- Nominal Voltage：220/230/240VAC
- Frequency Range:50Hz/60Hz
Key Features:
- Touch screen display.
- PV and utility power the load at the same time( can be set ).
- Output power factor PF=1.0.
- On&Off Grid with energy storage.
- Energy generated record, load record, history information, and fault record.
- Structure with dust filter.
- AC charging start and stop time setting.
- External Wi-Fi device is optional.
- Parallel operation up to 9 units.
- Connected with battery optional.
- Wide PV input range120-450VDC.
- Independent CPU.
- MAX PV Array power 5500W.
- Solar and Utility supply power to the load When solar power is not sufficient to load.
- The CT sensor will monitor the power consumption of the system and will make sure no excess PV power is delivered to the Grid.

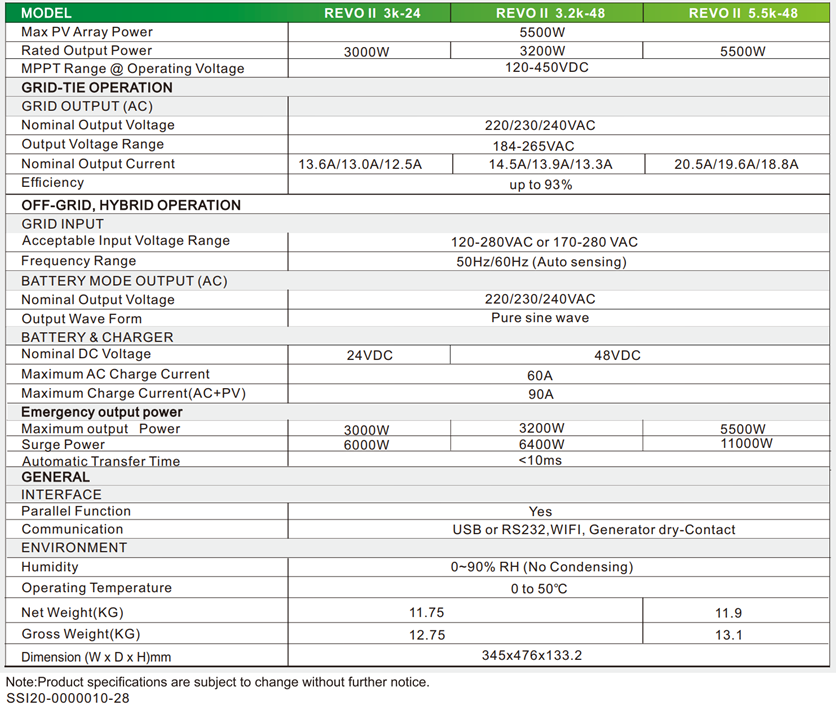

Data Sheet:
